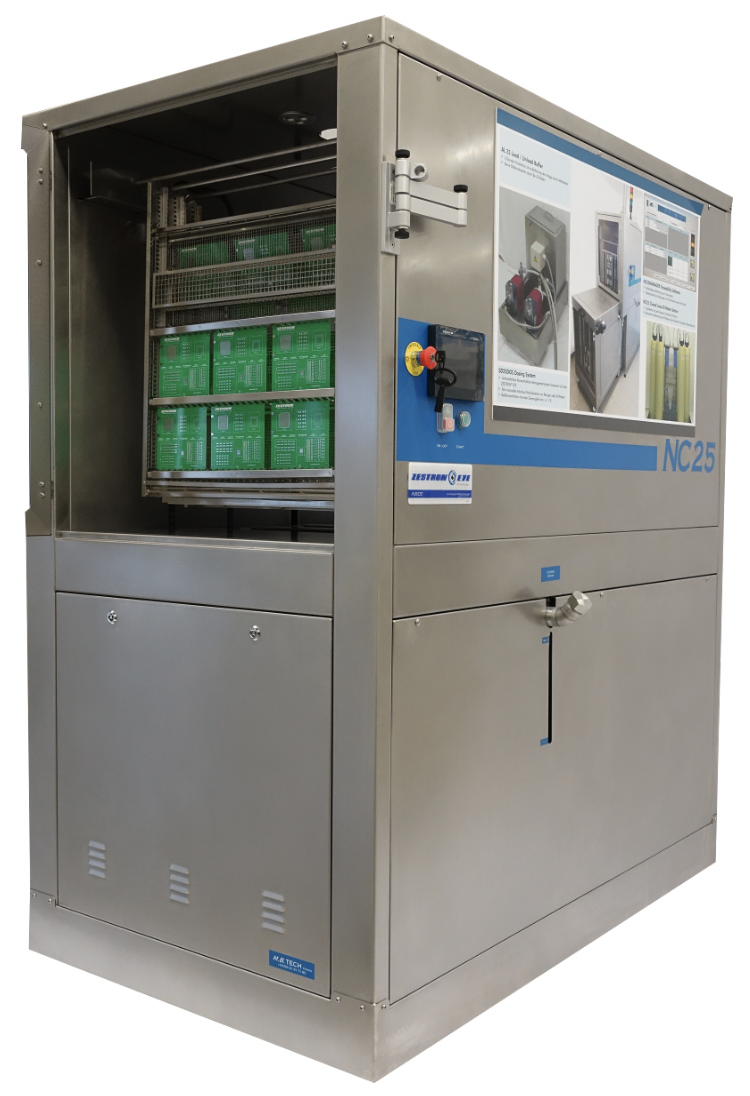

Our client sought to enhance the efficiency of their NC-25 board cleaning system. The existing system required manual PCB handling, limiting throughput and introducing potential for errors. The goal was to design a PCB holding system that could be retrofitted, reliably holding PCBs in place and improving overall process efficiency – all without requiring modifications to the original machine’s structure.

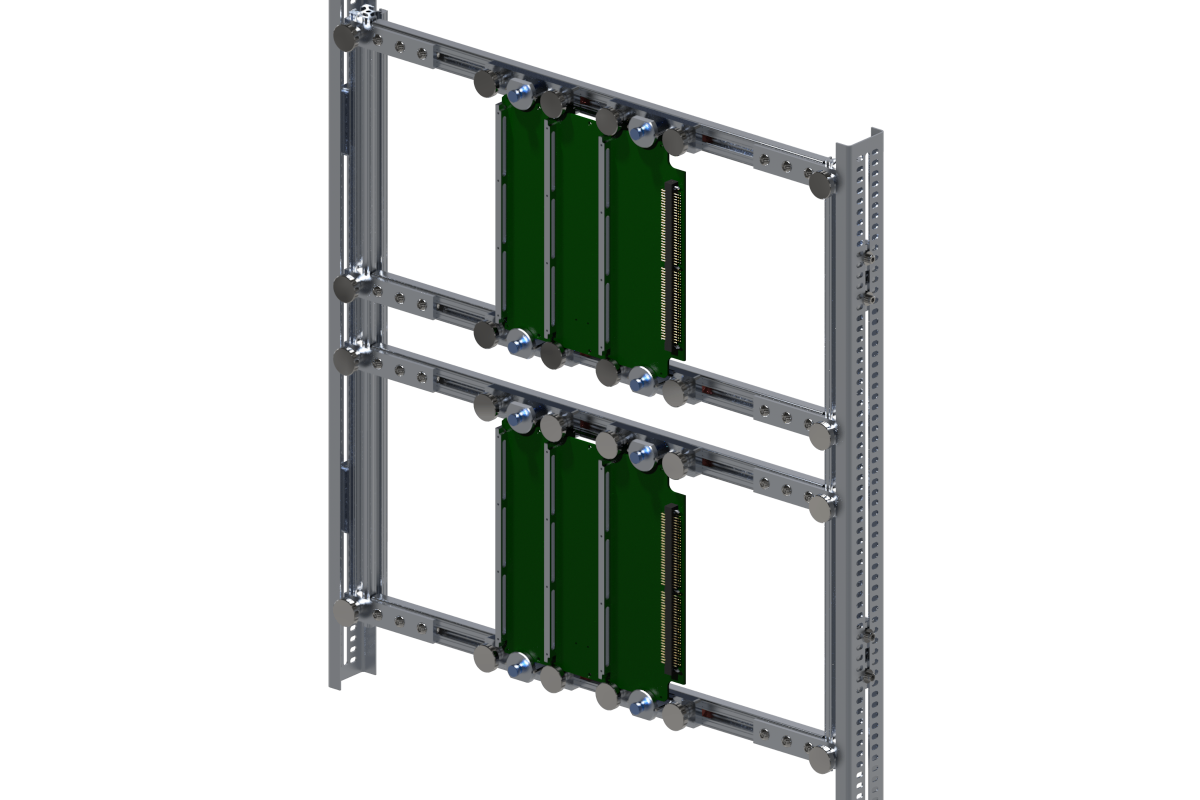

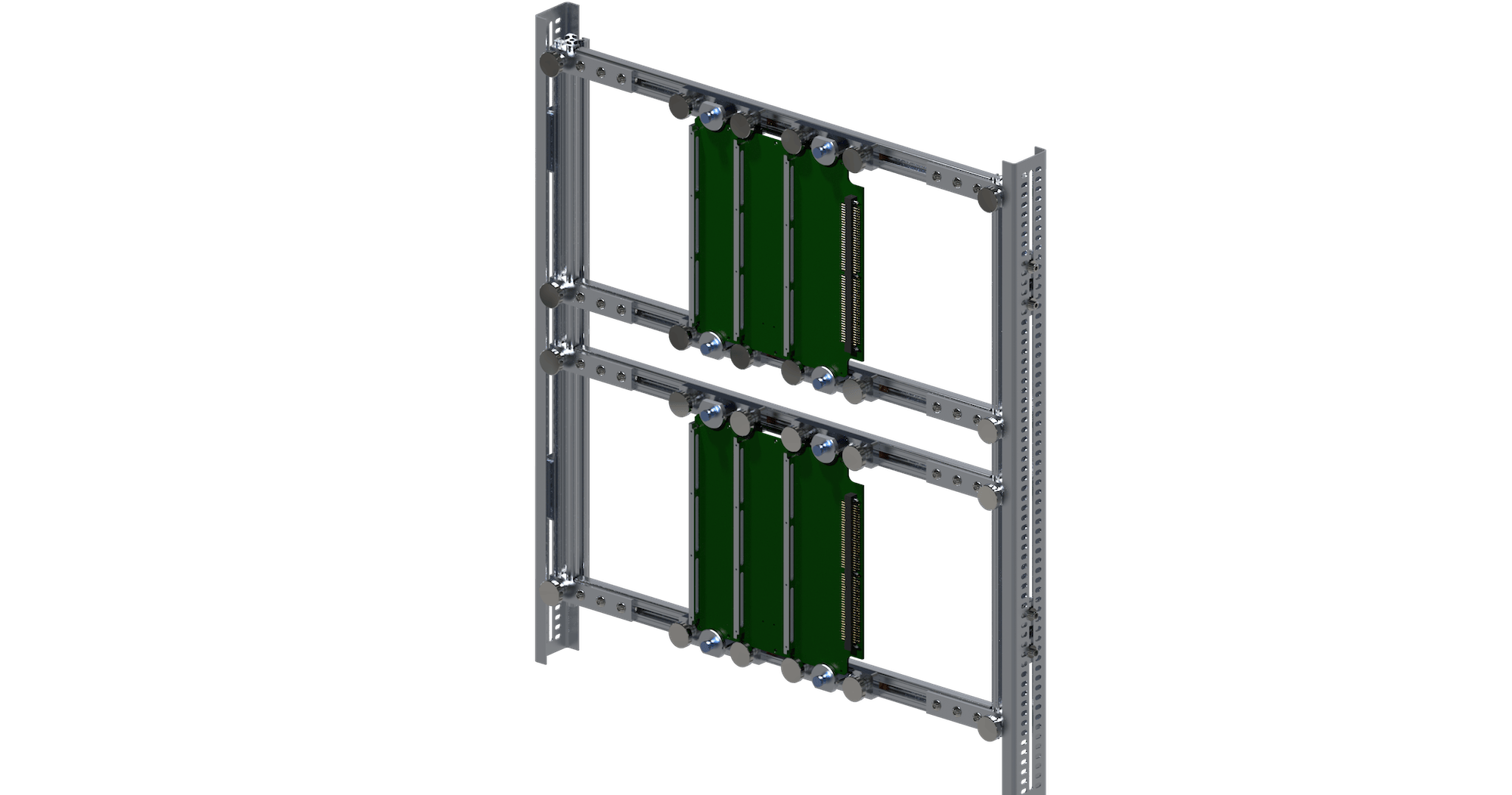

We engineered a PCB holding system designed specifically for retrofit integration into the NC-25 board cleaning system. The key was to create a solution that was both effective and non-invasive, seamlessly integrating with the existing infrastructure. The resulting system allows for the simultaneous holding of multiple PCBs (depending on their size), significantly reducing cycle times and improving operator productivity.

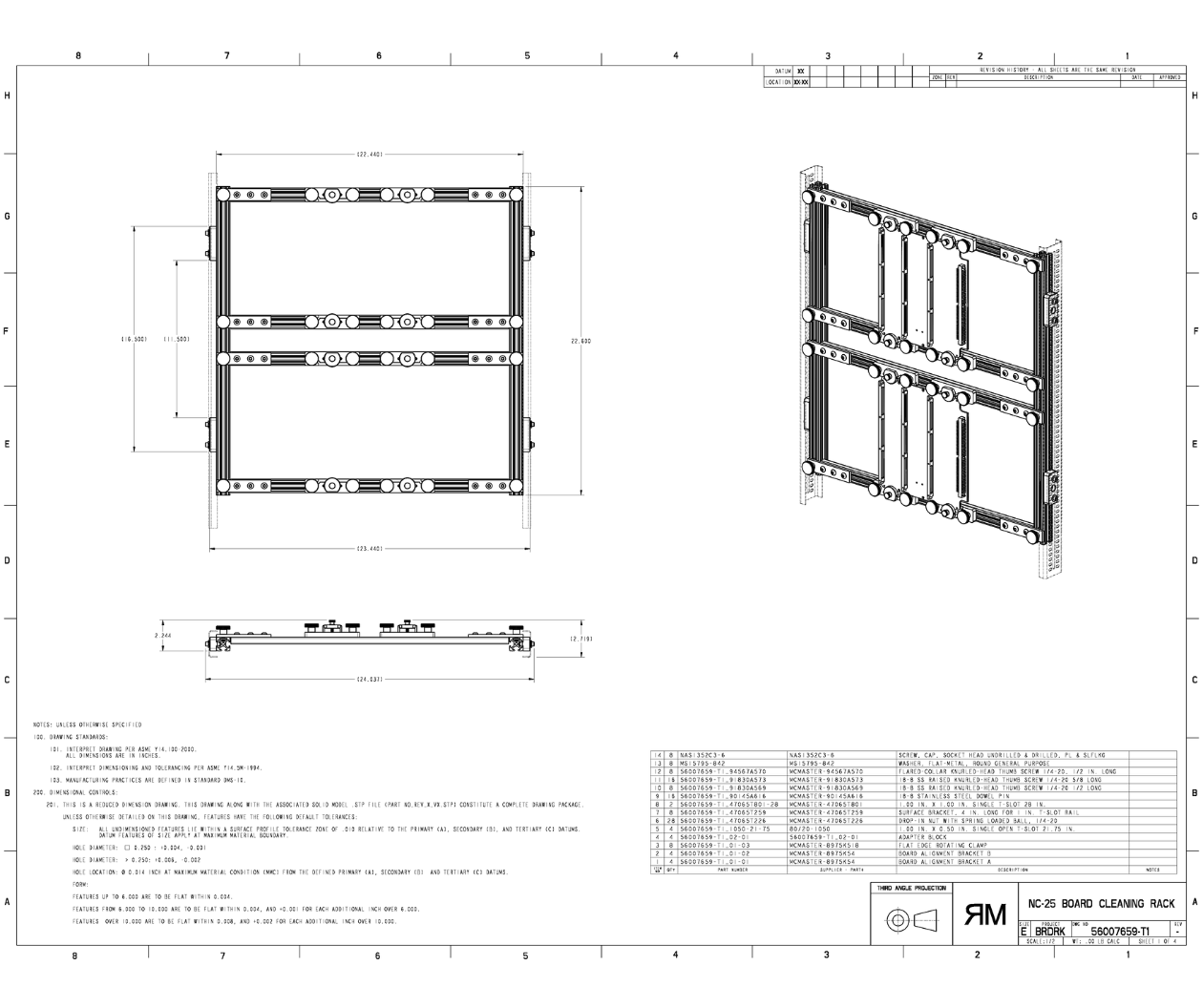

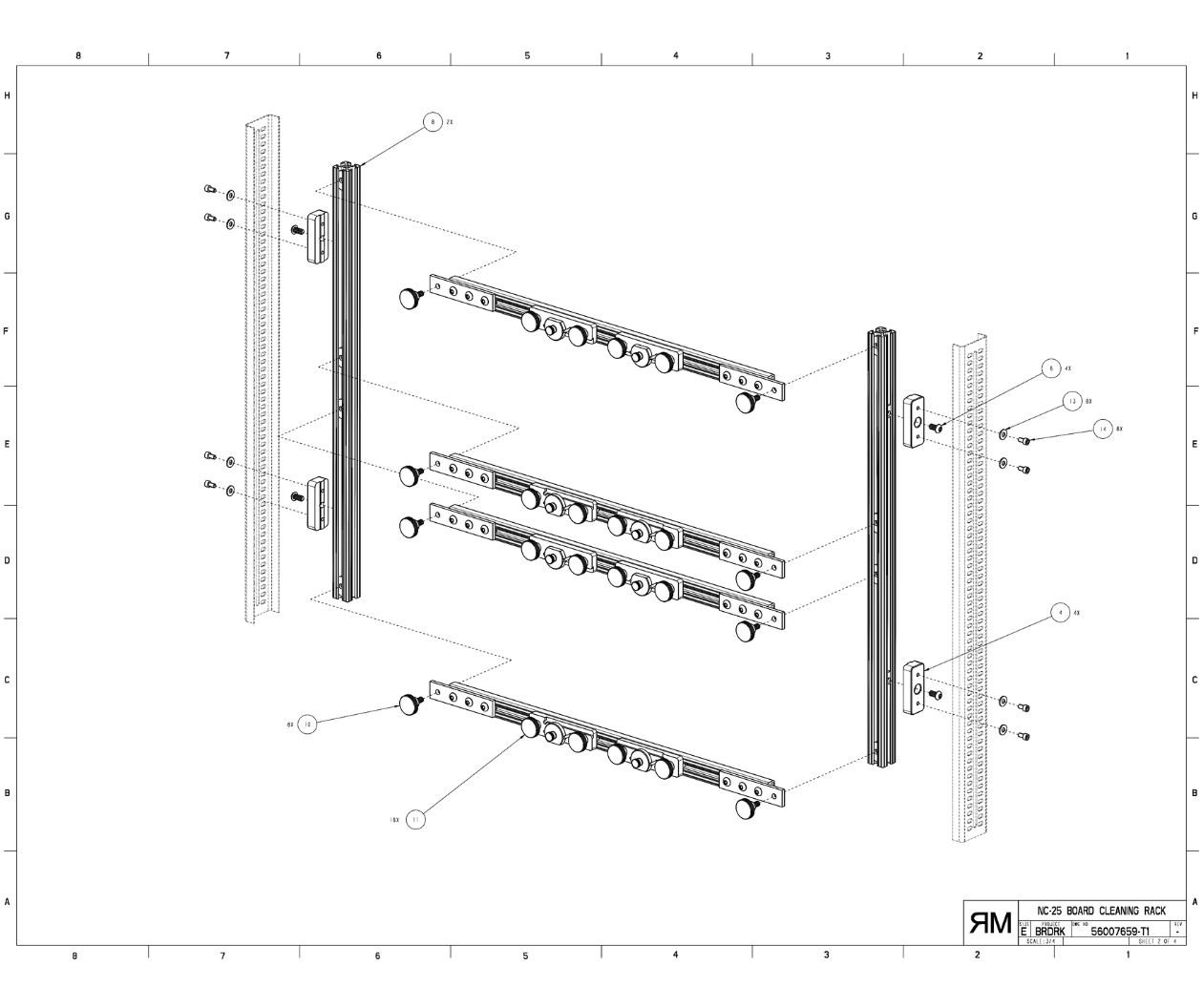

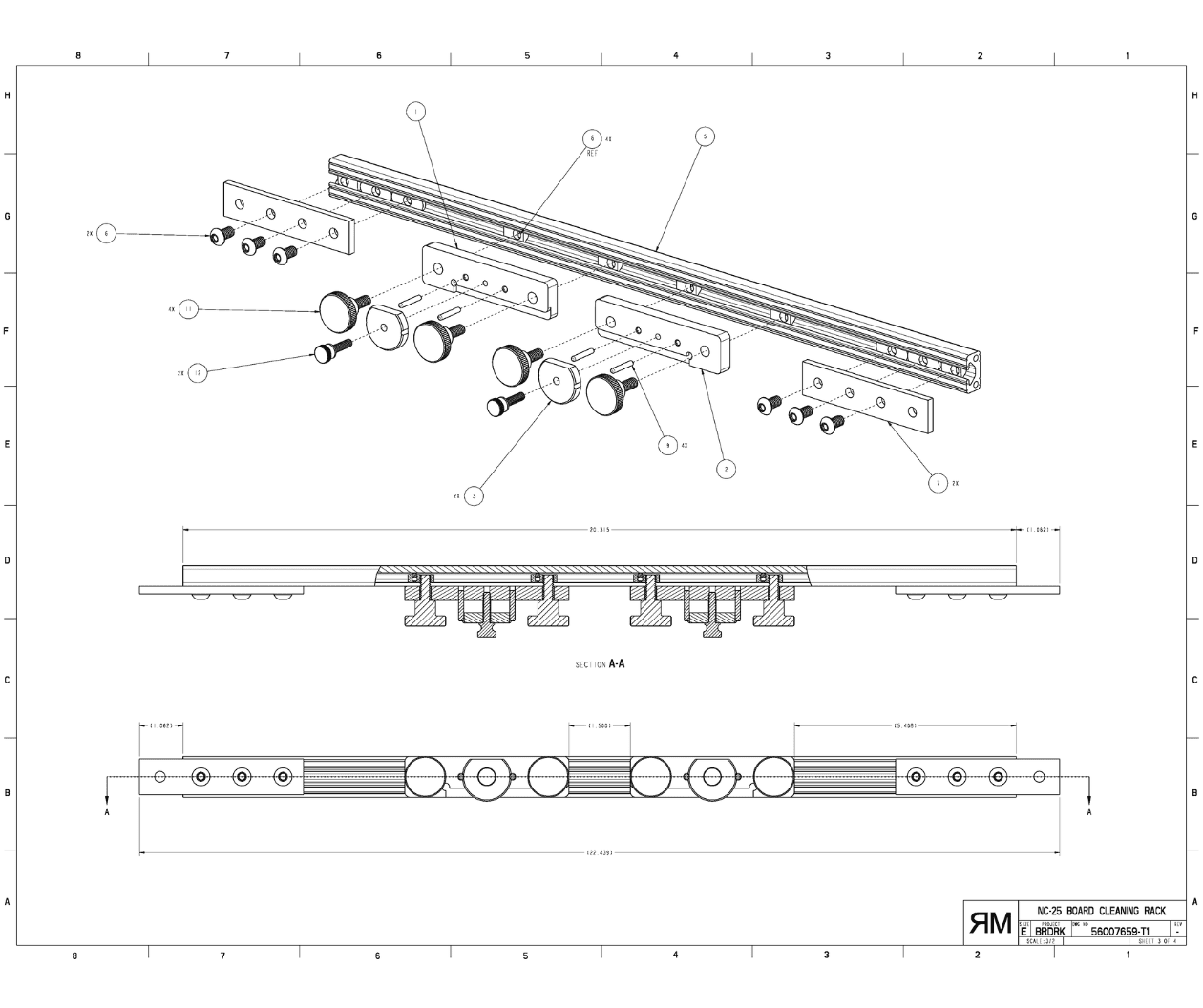

We delivered a fully documented design, including a parametric CAD model, detailed engineering drawings, and a comprehensive Bill of Materials. The retrofit solution provides our client with a cost-effective upgrade, enabling continuous improvement in their board cleaning process and enhancing overall operational efficiency.

This project showcased our ability to combine mechanical design expertise with a keen understanding of manufacturing processes. Our team leveraged the following skills:
